Single Mirror Goniolens
Due to its small size, a single mirror goniolens is very convenient to handle
Two Mirror Goniolens
Two opposing mirrors inclined at 62° provide a complete 360°
view of angle with only 90° of rotation of the lens.
Similar to a single mirror goniolens,helps in
examination of children and adults.

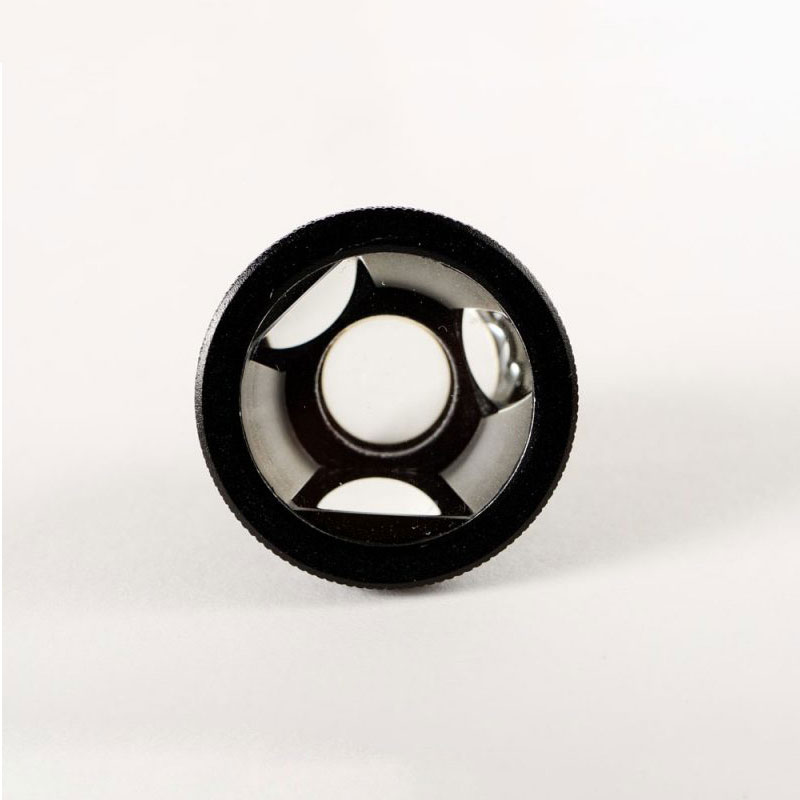

Three Mirror Goniolens
This lens has three mirrors angled at 59°, 66° and 73° and arranged at 120° intervals to permit viewing of the fundus and anterior chamber angle. s also observable through the central axis of the lens.

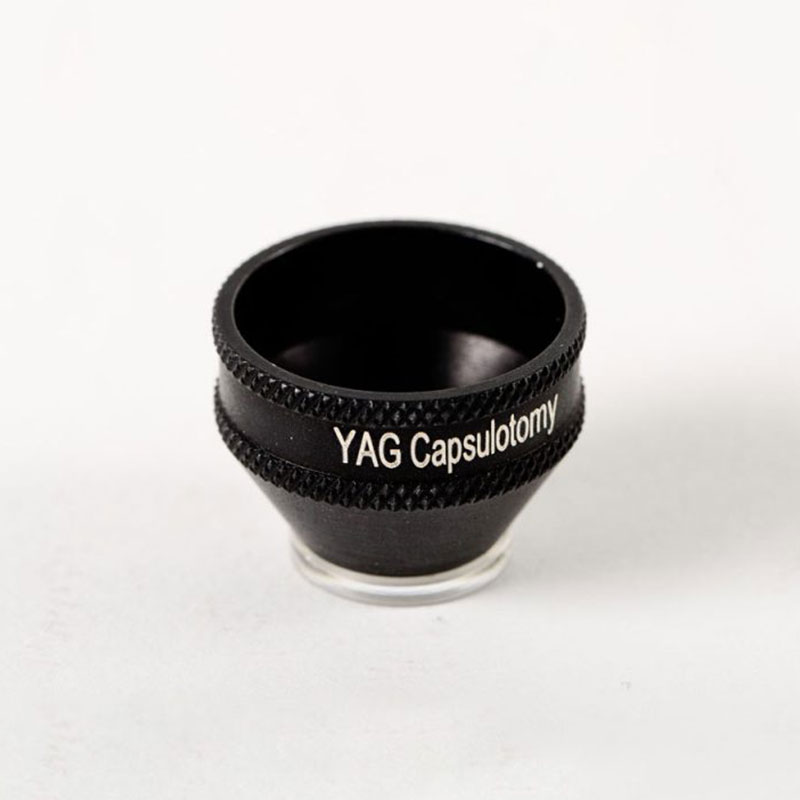

YAG Capsulotomy Lens
Used for ND-YAG laser posterior capsulotomy and
anterior vitreolysis. The +30 D lens condenses the
laser energy. The anodized light metal rim gives a
firm grip on the lens.
made in glass.
made in glass.

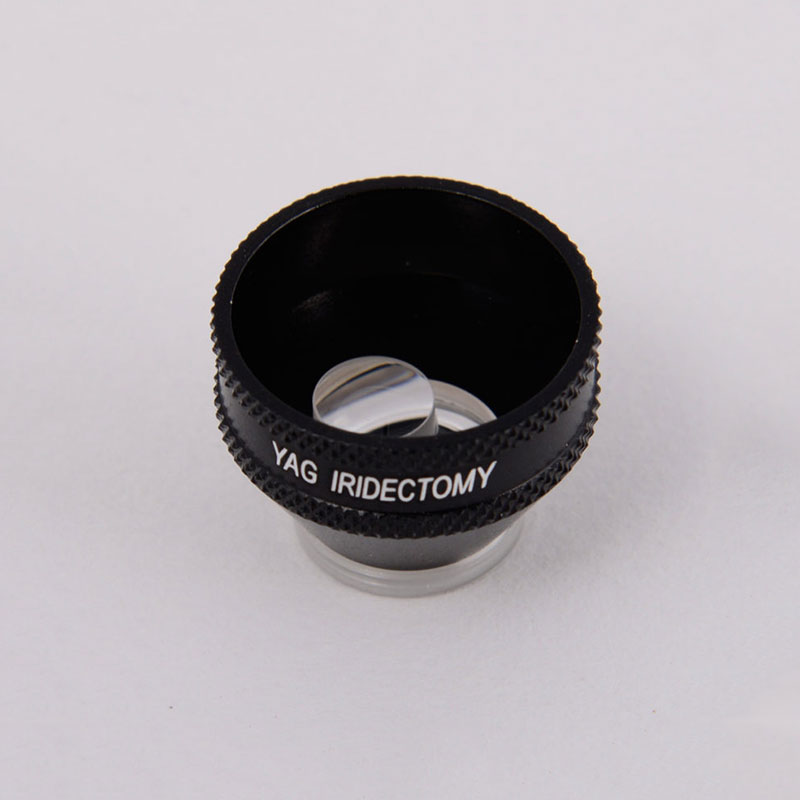

YAG Iridectomy Lens
This lens consists of a modified Goldmann type fundus lens with a 7.50 mm diameter +70 D plano-convex lens bonded to the anterior surface. The +70 D button lens helps in condensing the laser energy.

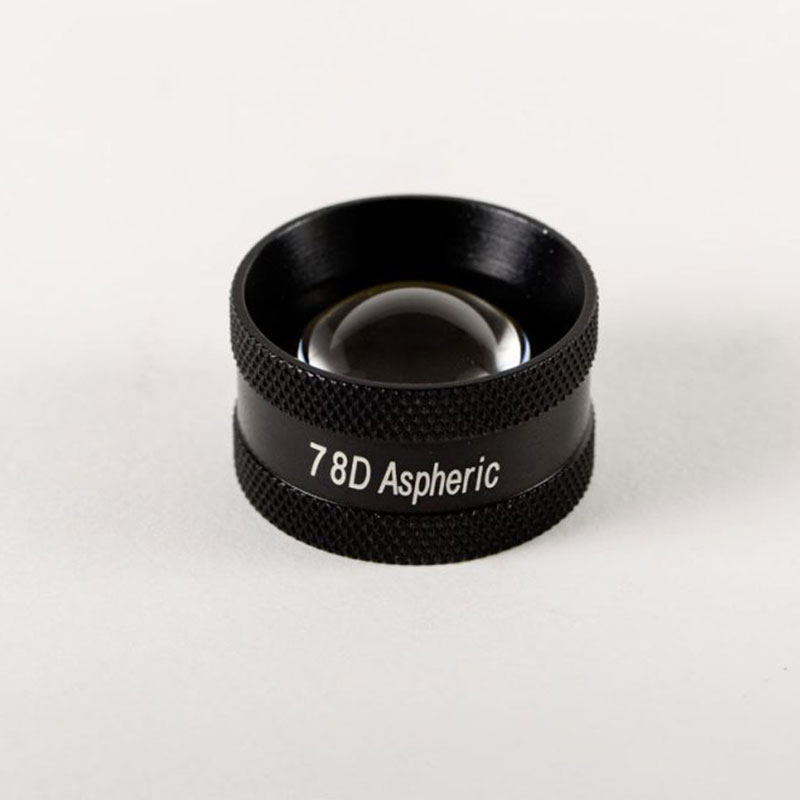

78D Aspheric Lens
This Slit lamp lens offers an ideal combination magnification and field of view. It also provides an extended working distance from cornea. Superior glass optics offers high clarity images made in glass, CE certified

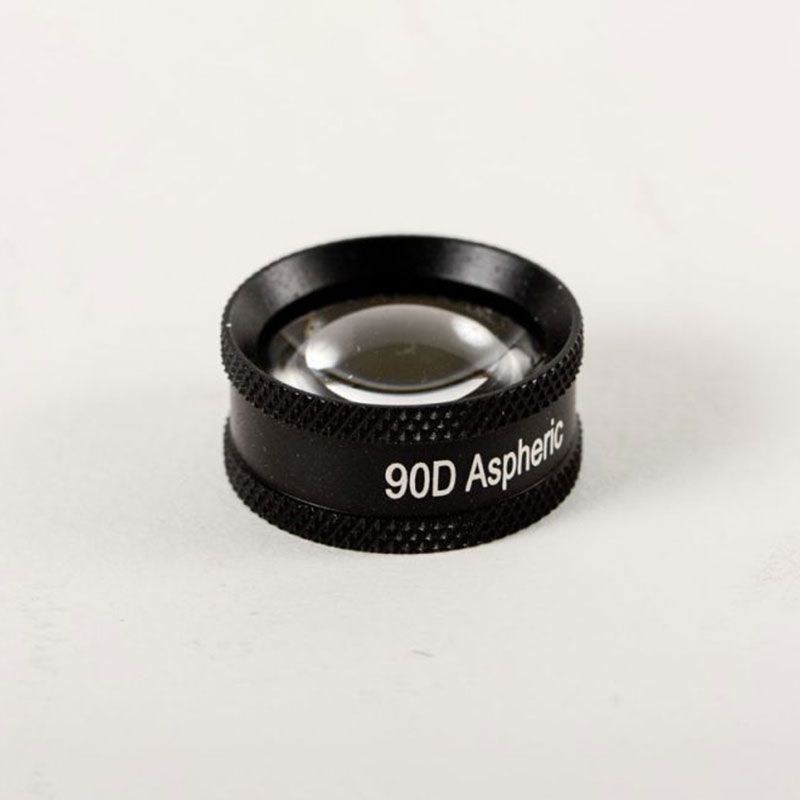

90D Aspheric Lens
This Slit lamp lens is the most popular power for non-contact fundus examination. It offers a wide-field fundus imaging out to and beyond the equator. A high magnification provides an increased illuminated

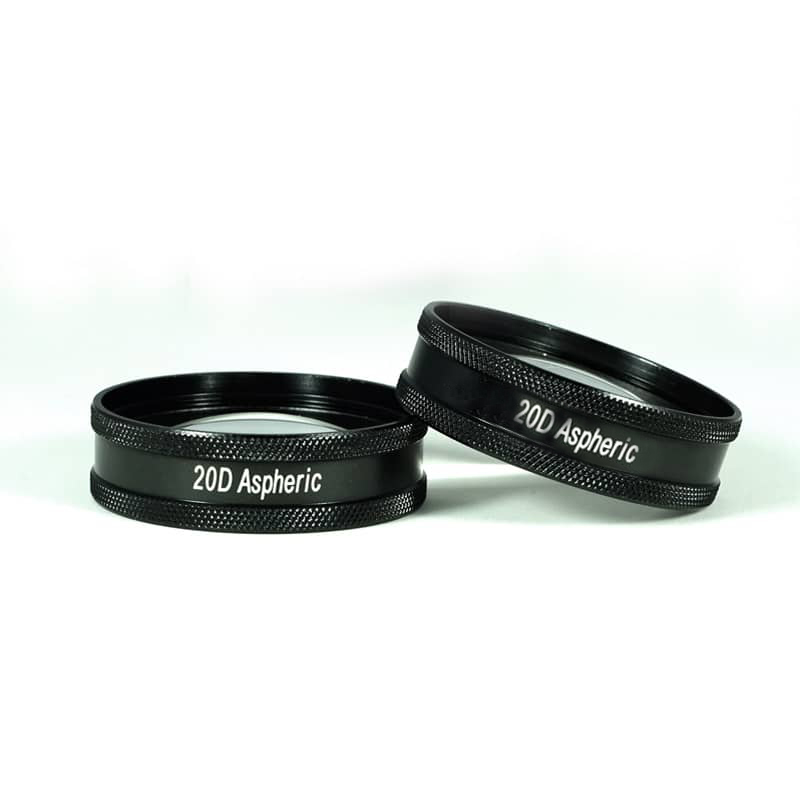

20D Aspheric Lens
This Slit lamp lens is the most popular power for non-contact fundus examination. It offers a wide-field fundus imaging out to and beyond the equator. A high magnification provides an increased illuminated.
