Slit Lamp – EyeGen Medical

Performance, Ergonomics, and Clarity for Todays Eye Care Professional

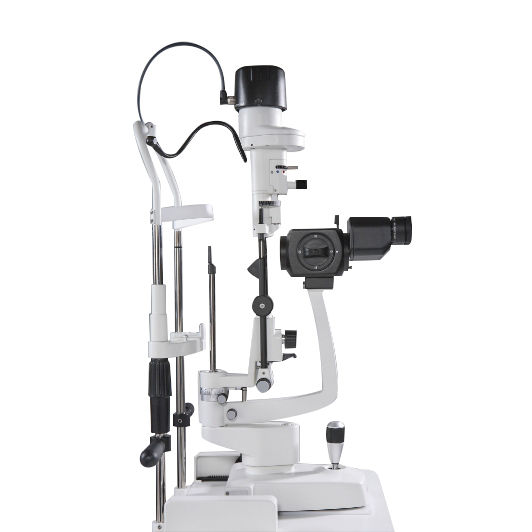

Our slit lamp microscope designs are intended to maximize capital ROI by today's Optometrists and Ophthalmologists. Two options are available in the form of bottom illumination as well as tower style illumination that enable a multitude of modalities in lane-chair microscopes for diagnostics as well as laser driven surgery. Apochromatic optics and efficient LED or Halogen illumination systems ensure crisp visualization of the cornea and fundus.

FEATURES

Slit lamps are sturdy instruments built with fluidity in movement and ergonomics to benefit hours of use.

Optics provide the highest throughput of light, superb anti-reflective properties and yield crisp and detailed images. These optics are antifungal, anti-fog and scratch resistant in addition to producing true-to-life resolution.

A super bright 5W LED will provide IR/UV free illumination for over 50,000 hours of bulb life. An optional 6V20W halogen option is also available for those maintaining clinical equipment consistency. A highly efficient apochromatic optical system delivers a crisp, homogenously illuminated visual field.

Our slit lamps offer a variety of video and digital documentation options, both for real-time feedback as well as insurance reimbursement. Select from our HD streaming cameras or adapt your own DSLR cameras or iPhone with the use our adapters.

For convenience in fluorescein exams, our 5-Step magnification Slit lamp Microscope has a flip-in Wrattan filter built into the optical chamber.

3 Step Magnification

	3 Step Zeiss Type	3 Step HS Type
MICROSCOPE	Galilean	Galilean
MAGNIFICATION	3 step: 10X, 16X, 25X	3 step: 10X, 16X, 25X
EYEPIECES	WF 12.5X/18 mm, diopter adj. ± 5 mm	WF 12.5X/18 mm, diopter adj. ± 5 mm
IPD RANGE	49 - 77 mm	49 - 77 mm
SLIT LENGTH/WIDTH	0 - 13.5 mm	0 - 12 mm
SLIT APERTURES	0.6, 5.8, 9, 13.5 mm and continuous 1.5 to 12.0 mm	0.6, 5.8, 9, 13.5 mm and continuous 1.5 to 12.0 mm
SLIT ROTATION	0 - 180°	0 - 180°
SLIT TILT	-	20°
FILTERS	Red free, Cobalt blue, Heat absorbing	Red free, Cobalt blue, Heat absorbing, Neutral density
MOVEMENT RANGES	-	-
LONGITUDINAL (IN/OUT)	100 mm	100 mm
LATERAL (LEFT/RIGHT)	107 mm	107 mm
VERTICAL (UP/DOWN)	30 mm	30 mm
CHIN REST RANGE	80 mm	80 mm
ILLUMINATION	6V 20W Halogen or 5W LED	6V 20W Halogen or 5W LED
TABLE BASE SIZE	367 mm X 360 mm X 5.5, Metal	367 mm X 360 mm X 5.5, Metal
WEIGHT	25 kg (packed)	30 kg (packed)
VOLTAGE	100-240V AC	100-240V AC
FREQUENCY	50-60 Hz	50-60 Hz
OPTIONAL ACCESSORIES	Tonometer adapter, Beam splitter, C Mount camera adapter, Diffuser, Motorized table	Tonometer adapter, Beam splitter, C Mount camera adapter, Diffuser, Motorized table

5 Step Magnification

	5 Step Zeiss Type	5 Step HS Type
MICROSCOPE	Galilean	Galilean
MAGNIFICATION	5 step: 6.5X, 10X, 16X, 25X, 40X	5 step: 6.5X, 10X, 16X, 25X, 40X
EYEPIECES	WF 12.5X/18 mm, diopter adj. ± 5 mm	WF 12.5X/18 mm, diopter adj. ± 5 mm
IPD RANGE	48.5 - 77 mm	48.5 - 77 mm
SLIT LENGTH/WIDTH	0 - 13.5 mm	0 - 12 mm
SLIT APERTURES	0.6, 5.8, 9, 13.5 mm and continuous 1.5 to 12.0 mm	0.6, 5.8, 9, 13.5 mm and continuous 1.5 to 12.0 mm
SLIT ROTATION	0 - 180°	0 - 180°
SLIT TILT	-	20°
FILTERS	Red free, Cobalt blue, Heat absorbing, Yellow Filter (Wratten)	Red free, Cobalt blue, Heat absorbing, Neutral density, Yellow Filter (Wratten)
MOVEMENT RANGES	-	-
LONGITUDINAL (IN/OUT)	100 mm	100 mm
LATERAL (LEFT/RIGHT)	107 mm	107 mm
VERTICAL (UP/DOWN)	30 mm	30 mm
CHIN REST RANGE	80 mm	80 mm
ILLUMINATION	6V 20W Halogen or 5W LED	6V 20W Halogen or 5W LED
TABLE BASE SIZE	465 mm X 316 mm	465 mm X 316 mm
WEIGHT	25 kg (packed)	24 kg (packed)
VOLTAGE	100-240V AC	100-240V AC
FREQUENCY	50-60 Hz	50-60 Hz
OPTIONAL ACCESSORIES	Tonometer adapter, Beam splitter, C Mount camera adapter, Diffuser, Motorized table	Tonometer adapter, Beam splitter, C Mount camera adapter, Diffuser, Motorized table
